The workshop behind the quotation

Cutting, welding, lining, testing and packing — the five stages every order passes through. Inspection by video call is welcome at any time.

PROCESS

Five stages, each one checked

01 · Cutting & Fit-up

Base pipe cut to drawing length, ends prepared and flanges aligned before welding.

02 · Welding

Flange and fitting welds by qualified welders; spools assembled to the isometric.

03 · Lining

Virgin PTFE liner inserted, then flared over the flange face to protect the sealing surface.

04 · Testing

Hydrostatic test on the assembly, then spark test across the lining to find any pinhole.

05 · Marking & Packing

Each piece tagged with its drawing number, flange faces covered, then export packing.

WORKSHOP

Inside the shop

Flange & Lining Detail

Liner flared over the flange face — the detail that keeps the seal corrosion-free.

Spool Fabrication

Fabricated lengths staged before testing and packing.

Lined Fittings

Elbow, tee and reducer lined to match the straight run.

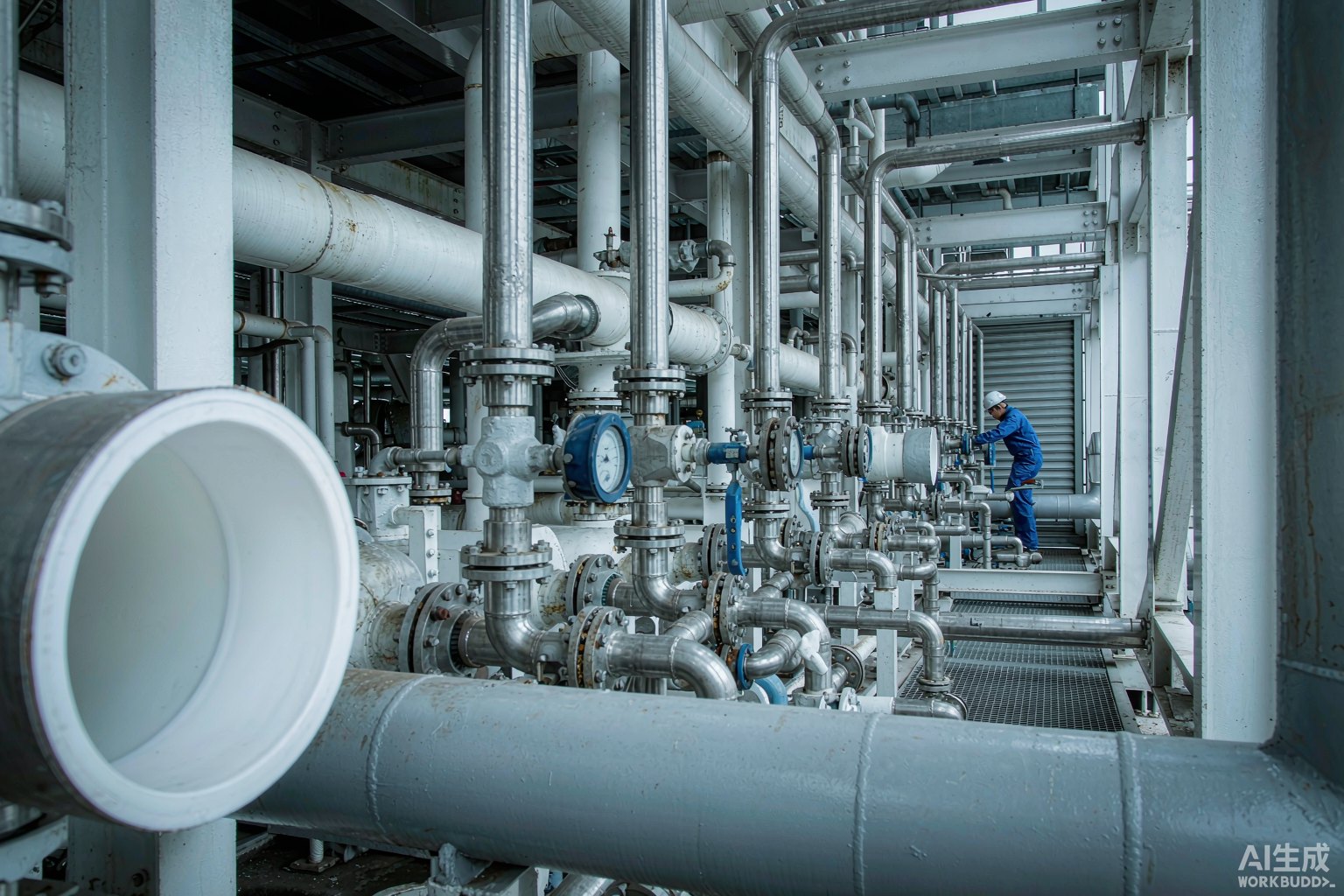

Site Installation

Our piping installed on a customer's process line.

Photo slots reserved for real workshop shots
Workshop panorama · Welding in progress · Hydrostatic & spark testing · Container loading — replace these with your own photos before going live.

QUALITY CONTROL

What we test, and what you receive

A lined pipe can look perfect and still have a pinhole in the liner. That is why every piece is tested, and why you get the record — not just our word.

Hydrostatic test — pressure integrity of the assembly
Spark test — high-voltage scan to detect any liner defect
Dimensional check — face-to-face length, flange drilling, bore
Material certificates — base pipe and PTFE traceability
Test report & packing list — supplied in English for import

Typical documentation set

Mill certificate	Base pipe and lining material
Hydrostatic test report	Per piece or per batch as agreed
Spark test record	Lining integrity
Dimensional report	Against your drawing
Packing list	With drawing numbers and marks
Third-party inspection	Supported if you nominate an agency

Tell us your import documentation requirement at enquiry stage so we include it in the quotation.

Want to see the workshop live?

We can walk you through the shop on a video call — cutting, welding, lining and testing.
